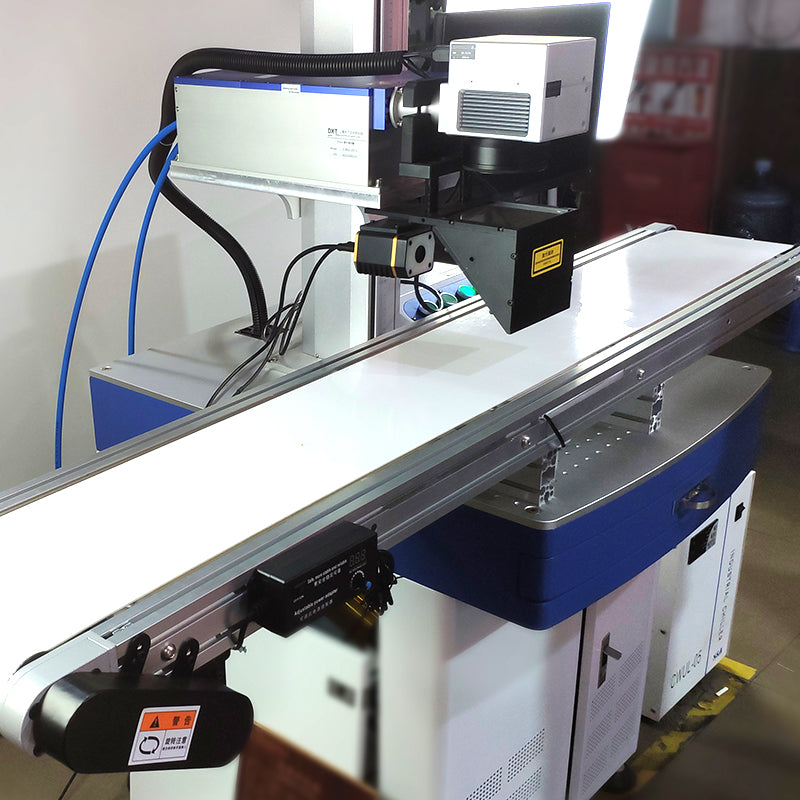

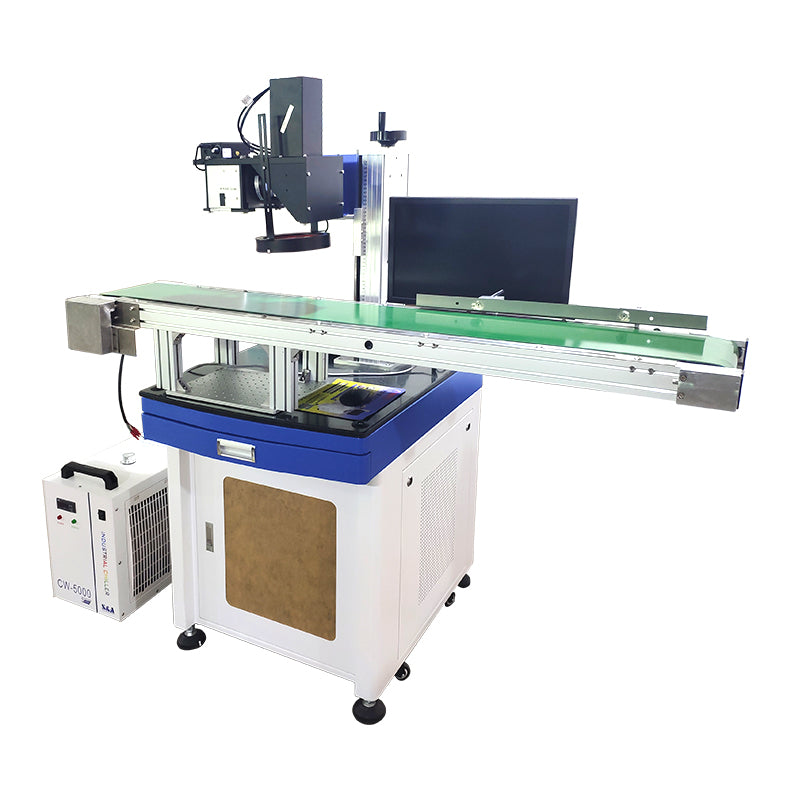

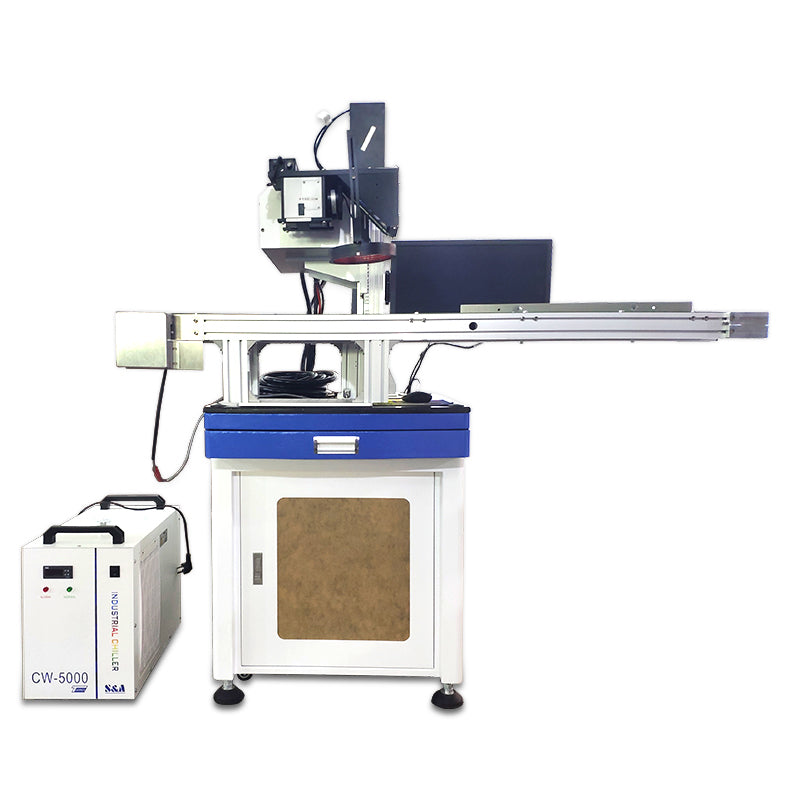

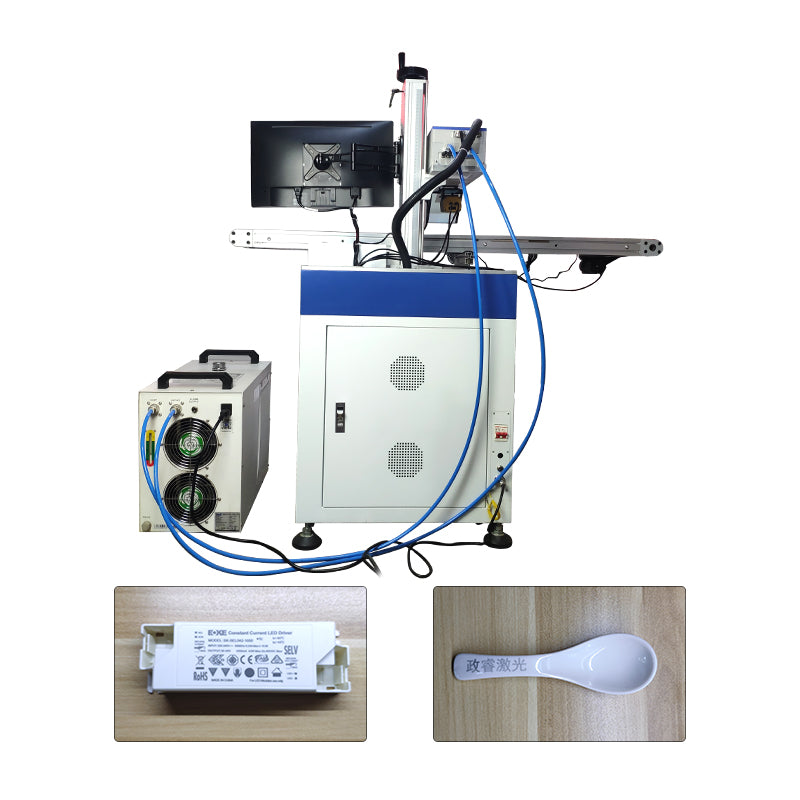

Uv Vision Laser Marking Machine

It is mainly applied in hyper fine high end handling industries, Suitable for food, medicine and medical industry, automobile industry, 3C industry, electronic components, medical components, cosmetics, art crafts, light fixtures, daily hygiene products, tobacco industry, smart cards, packaging bags, plastic bottles, cable pipes, automotive hoses, dairy metal filling, pipe profiles, cans etc.

Applicable Material:

It is mainly applied on marking and surface process of materials like all kinds of glass, TFT, LCD, plasma screen, textile, thin ceramic, monocrystalline silicon, IC crystalline grain, sapphire, thin polymer film, polymer etc.

Specifications – UV Vision Laser Marking Machine

• Laser Type: Ultraviolet (UV) Laser

• Wavelength: 355 nm

• Laser Power: 3W / 5W / 10W / 15W

• Marking Area: 100×200 mm

• Vision System: HD Industrial Camera with Auto Positioning & Marking Alignment

• Marking Depth: ≤0.1 mm (material dependent)

• Repetition Accuracy: ±0.01 mm

• Cooling Method: Air-cooled or water-cooled

• Supported Formats: PLT, DXF, BMP, JPG, AI, SVG, etc.

• Control Software: EZCAD with Vision Alignment Module

• Supported Materials: Plastics, glass, ceramics, silicon, rubber, coated materials

• Power Supply: AC 220V ±10%, 50/60Hz

• Machine Dimensions: Approx. 700×800×1600 mm

• Weight: Approx. 100–130 kg

• Optional Features: Auto-focus, rotary axis, fume extractor, touch screen

• Working Environment: 15°C–30°C, ≤75% RH

• Safety Features: Enclosed cabinet, laser safety glass, interlock system, emergency stop
