Radio Frequency CO2 Laser Marking Machine
$3,000.00 – $3,900.00
Guaranteed safe checkout
Description
Description

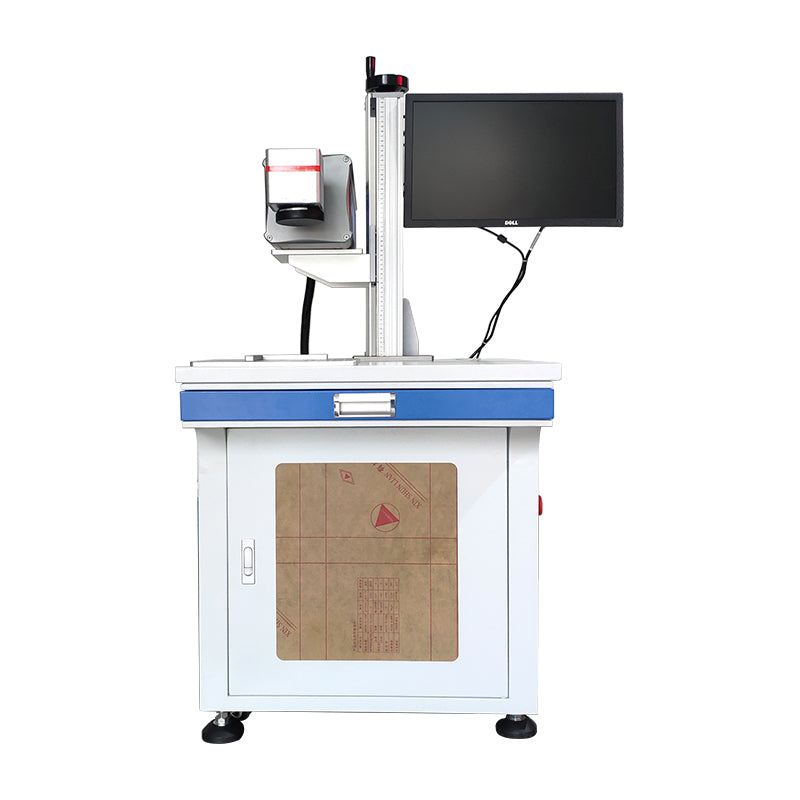

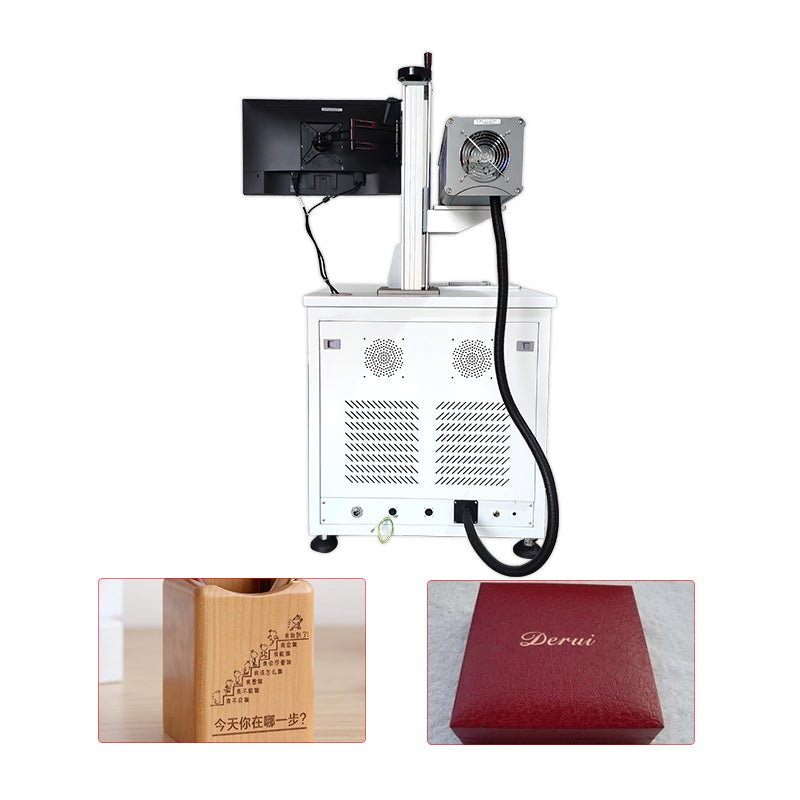

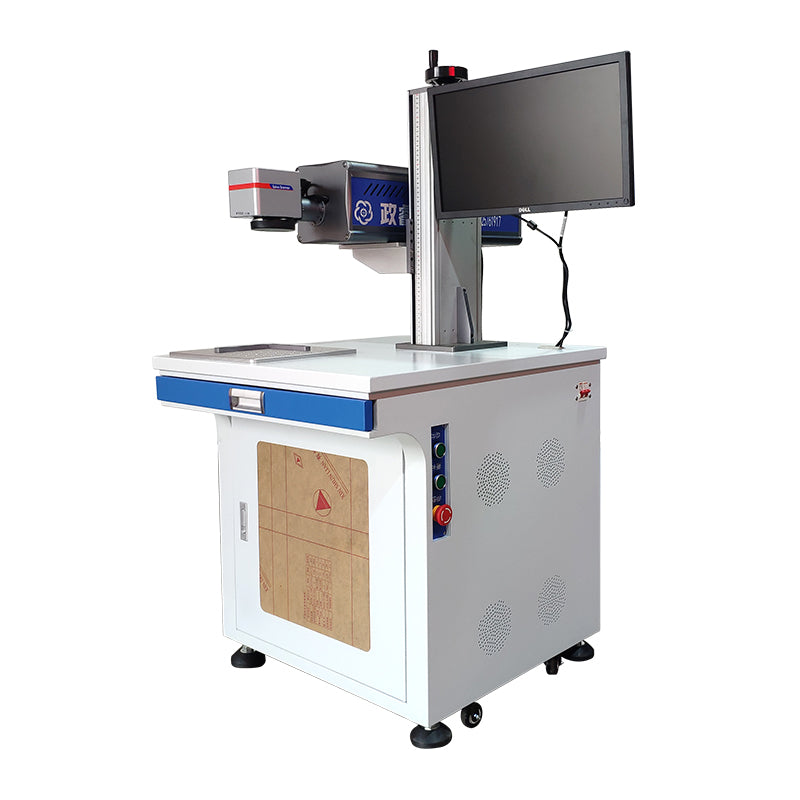

Radio Frequency CO₂ Laser Marking Machine – High-Speed, High-Quality Marking:
A high-speed, high-stability laser marking system using RF-excited CO₂ technology. Ideal for precise, permanent marking on non-metal materials like wood, plastic, leather, and paper. Delivers clean results with excellent beam quality and long service life.
Application Industry:
It is mainly applied in glasses industry, leather products, clothing industry, footwear industry, wood products industry, craft gifts, packaging industry etc.
Applicable Material:
Mainly applied in Suitable for most of non-metal materials, leather, cloth, wood, bamboo, paper, organic materials, acrylic, stone, etc.
Specifications – Radio Frequency CO₂ Laser Marking Machine
-
Laser Type: Sealed RF-Excited CO₂ Laser
-
Laser Power: 20W / 30W / 100W / 150W
-
Wavelength: 10.6 μm
-
Marking Area: 100×100 mm / 175×175 mm / 200×200 mm / 300×300 mm / 600mm
-
Marking Depth: ≤1 mm (material dependent)
-
Repetition Accuracy: ±0.01 mm
-
Beam Quality: M² < 1.2
-
Cooling Method: Air-cooled
-
Control Software: EZCAD
-
Supported File Formats: PLT, DXF, BMP, JPG, AI, etc.
-
Supported Materials: Wood, leather, acrylic, paper, rubber, glass, plastic, textiles, etc.
-
Power Supply: AC 110V / 220V ±10%, 50/60Hz
-
Machine Dimensions: Approx. 700×500×1400 mm (varies by configuration)
-
Optional Features: Fume extractor, rotary axis, safety enclosure, conveyor integration
-
Working Environment: 15°C–30°C, humidity ≤75% RH
-
Laser Source Life: ≥20,000 hours
