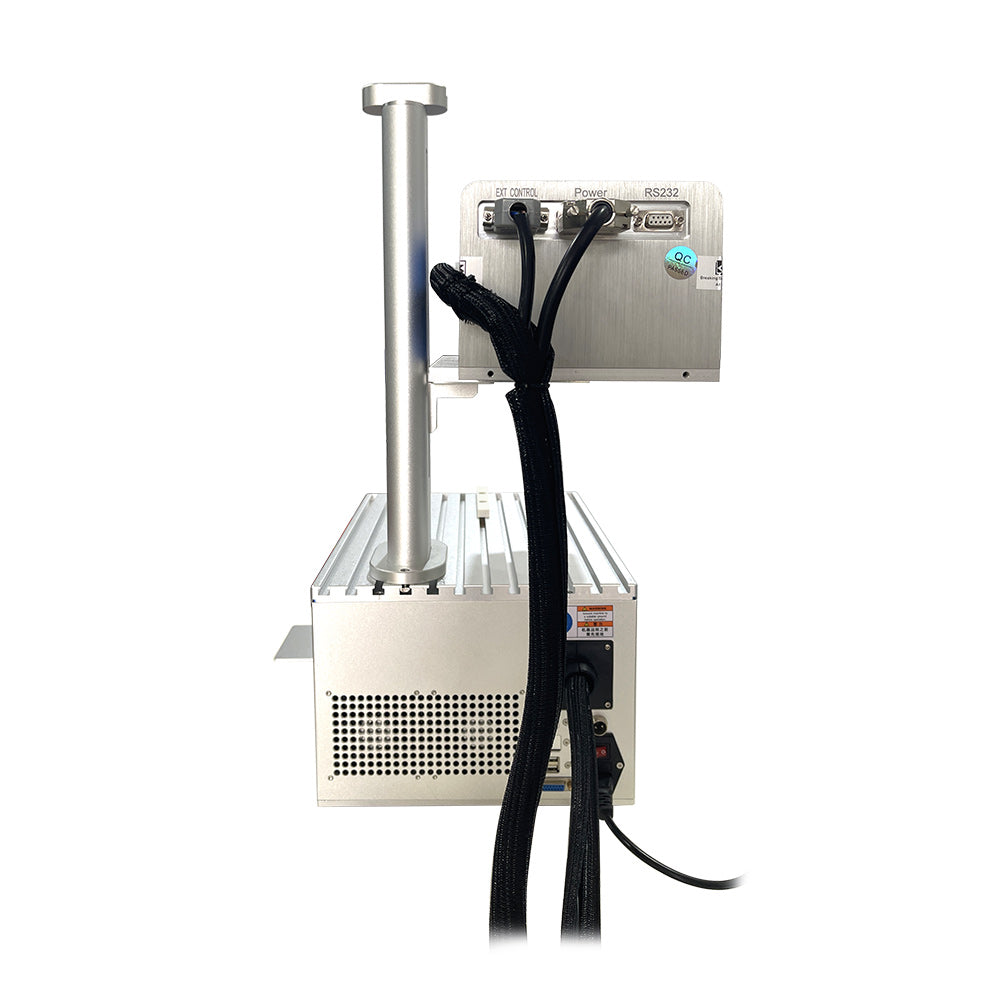

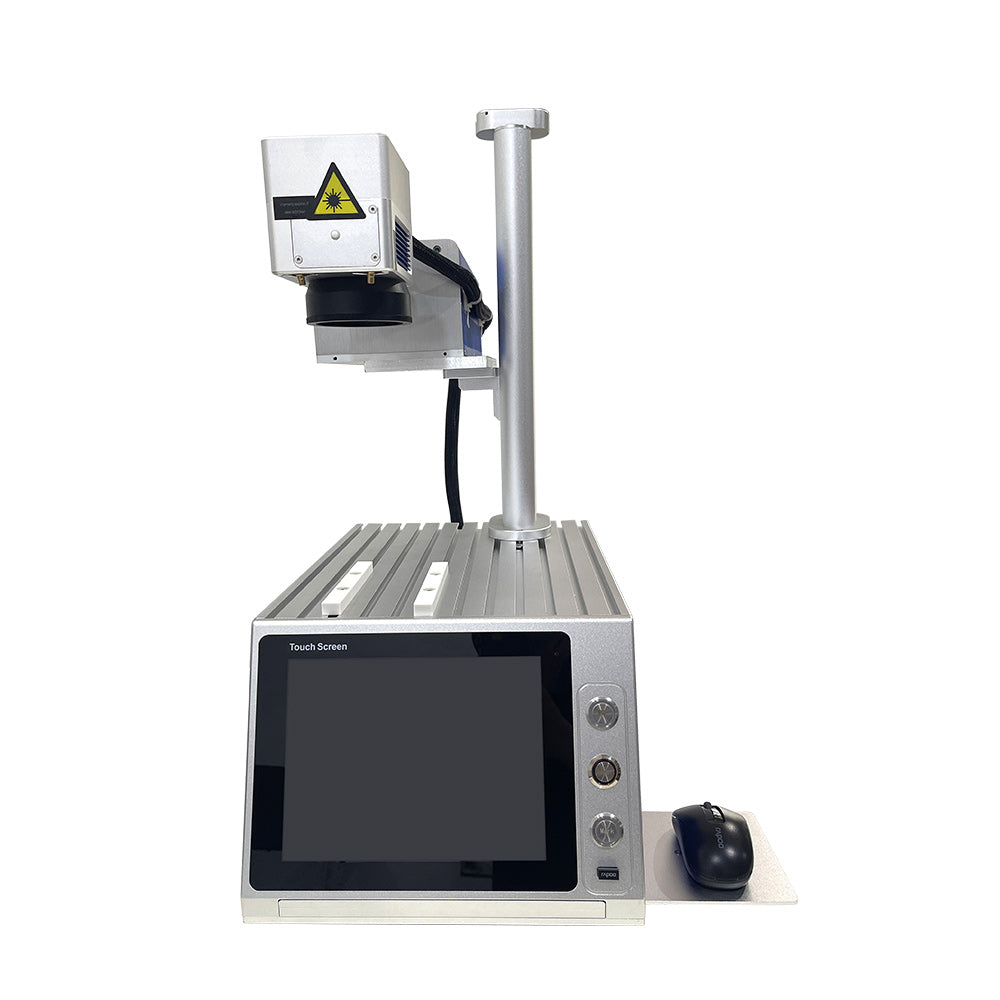

Portable UV Laser Marking Machine

Description

Portable UV Laser Marking Machine- 100* 200MM Marking Area:

A compact and precise marking solution for delicate materials. Ideal for plastics, glass, ceramics, and medical-grade components, this UV laser delivers high-contrast, damage-free marking with minimal heat impact. Lightweight, efficient, and perfect for fine-detail applications.

Applicable Material:

It can be applied on Silk fabric, cotton fabric, Mainly used in all kinds of glass, TFT, LCD screen, plasma exhibition, textiles, thin ceramic, single silicon wafers, polymer film, polymer and other materials marking and surface treatment, the
material on the market can basically be markedecorative fabric, polyester fabric, chemical fiber fabric, pure hemp fabric, leather, decorative leather, packaging leather, soft leather, rubber, acrylic, wood, paper etc.

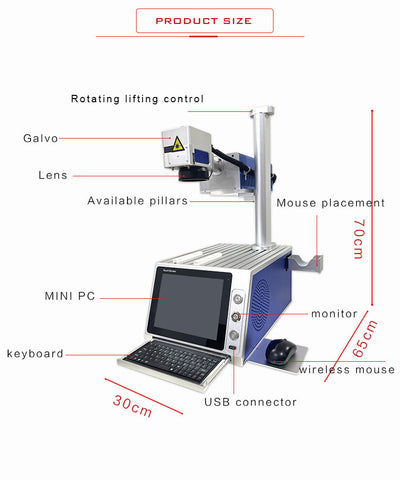

Specifications – Portable UV Laser Marking Machine

• Laser Type: Ultraviolet (UV) Laser

• Laser Wavelength: 355 nm

• Laser Power: 3W / 5W / 10W / 15W

• Marking Area: 100×200 mm

• Marking Depth: ≤0.1 mm (varies by material)

• Repetition Accuracy: ±0.01 mm

• Cooling Method: Air-cooled or water-cooled (depending on power)

• Supported Formats: PLT, BMP, DXF, JPG, AI, etc.

• Software: EZCAD

• Supported Materials: Plastics, glass, ceramics, silicon, rubber, coated materials

• Power Supply: AC 220V ±10%, 50/60Hz

• Operation Mode: Handheld or desktop

• Optional Features: Fume extractor, safety enclosure, rotary device

• Working Environment: 15°C–30°C, humidity ≤ 75% RH
