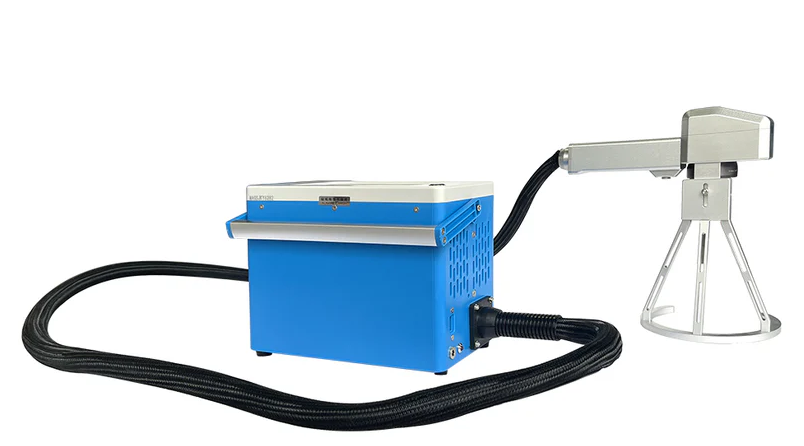

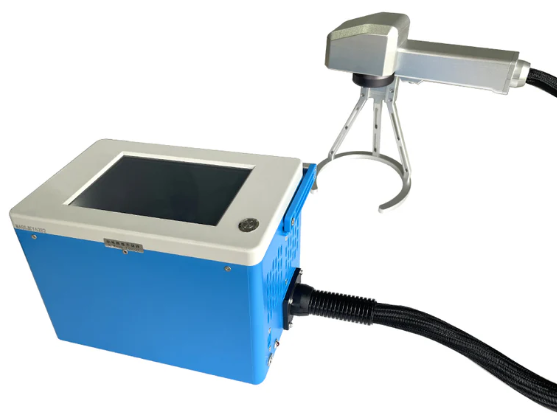

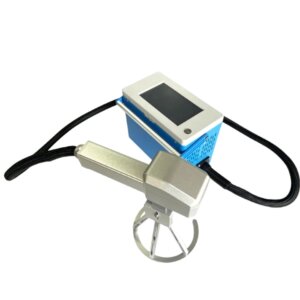

Portable Handheld Laser Marking Machine

Description

Portable Handheld Laser Marking Machine – Compact, Fast, and Durable:

A compact and lightweight laser marking solution designed for flexibility and ease of use. Ideal for marking metals, plastics, and more with high precision. Perfect for on-site jobs, small workshops, and industrial applications.

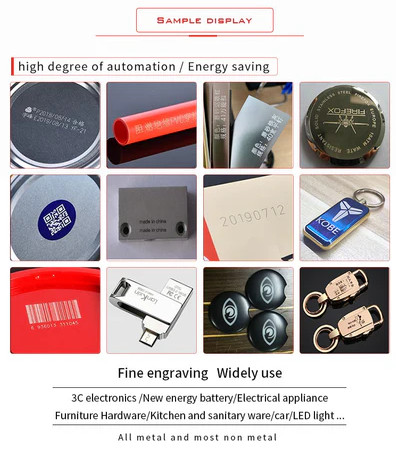

Applicable Material:

Metal and rock plate, plate, leather, some plastic plastic, some stone and other non-metallic materials, high hard alloy, oxide, electroplating, coating, ABS, epoxy resin, ink, engineering plastics, etc.

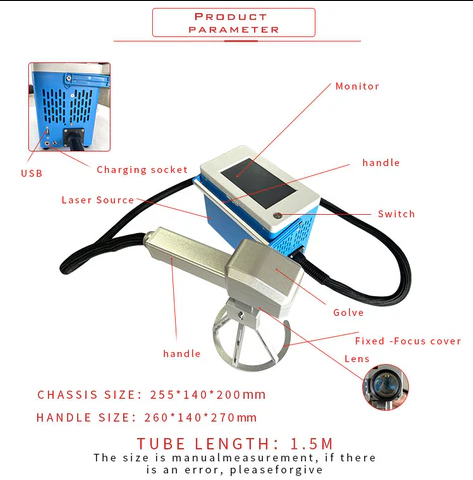

Specifications – Portable Handheld Laser Marking Machine

• Laser Type: Fiber Laser

• Laser Power: 20W / 30W / 50W (optional)

• Wavelength: 1064 nm

• Marking Area: 100×100 mm

• Marking Speed: Up to 7000 mm/s

• Marking Depth: ≤0.5 mm (varies by material and power)

• Repetition Accuracy: ±0.01 mm

• Cooling Method: Air-cooled

• Operation Mode: Handheld or Mounted

• Control Software: EZCAD (Windows-based)

• Supported File Formats: PLT, AI, DXF, BMP, JPG, SVG, etc.

• Compatible Materials: Metal, plastic, leather, ceramics, coated surfaces

• Power Supply: AC 110V / 220V ±10%, 50/60Hz

• Machine Dimensions: Approx. 450×200×700 mm

• Handheld Gun Weight: Approx. 1.2 kg

• Total Machine Weight: Approx. 6.7 kg

• Optional Accessories: Rotary axis, battery pack, safety goggles, protective case

• Working Environment: 0°C–40°C, humidity ≤ 80%
