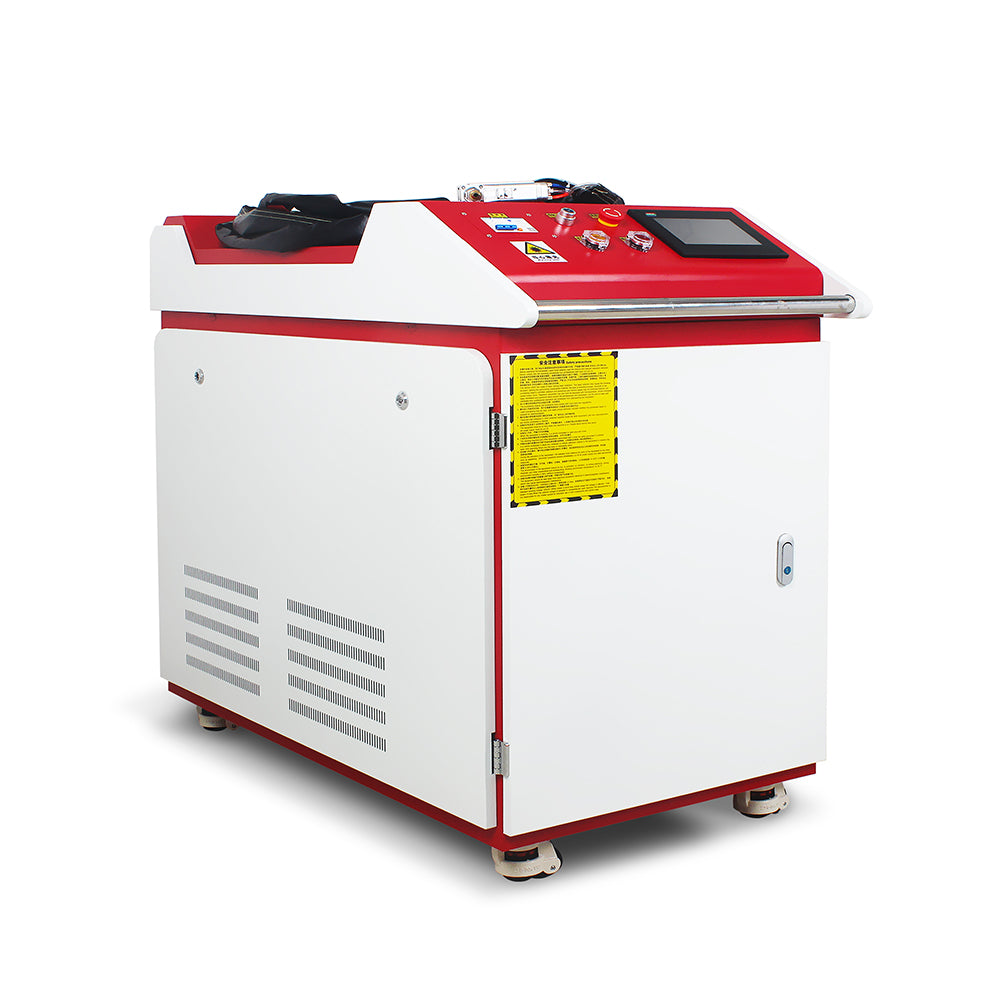

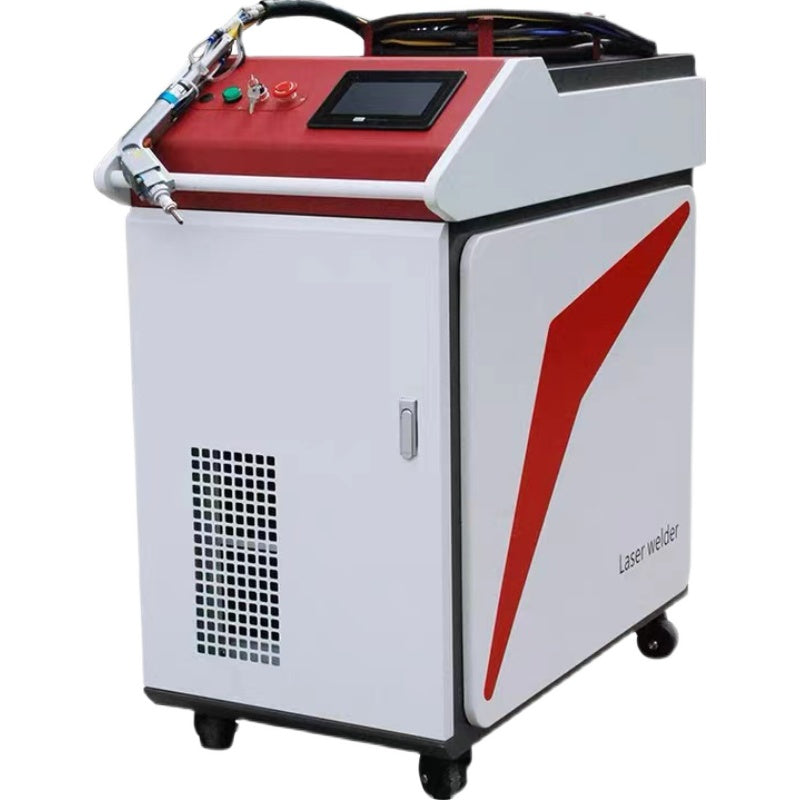

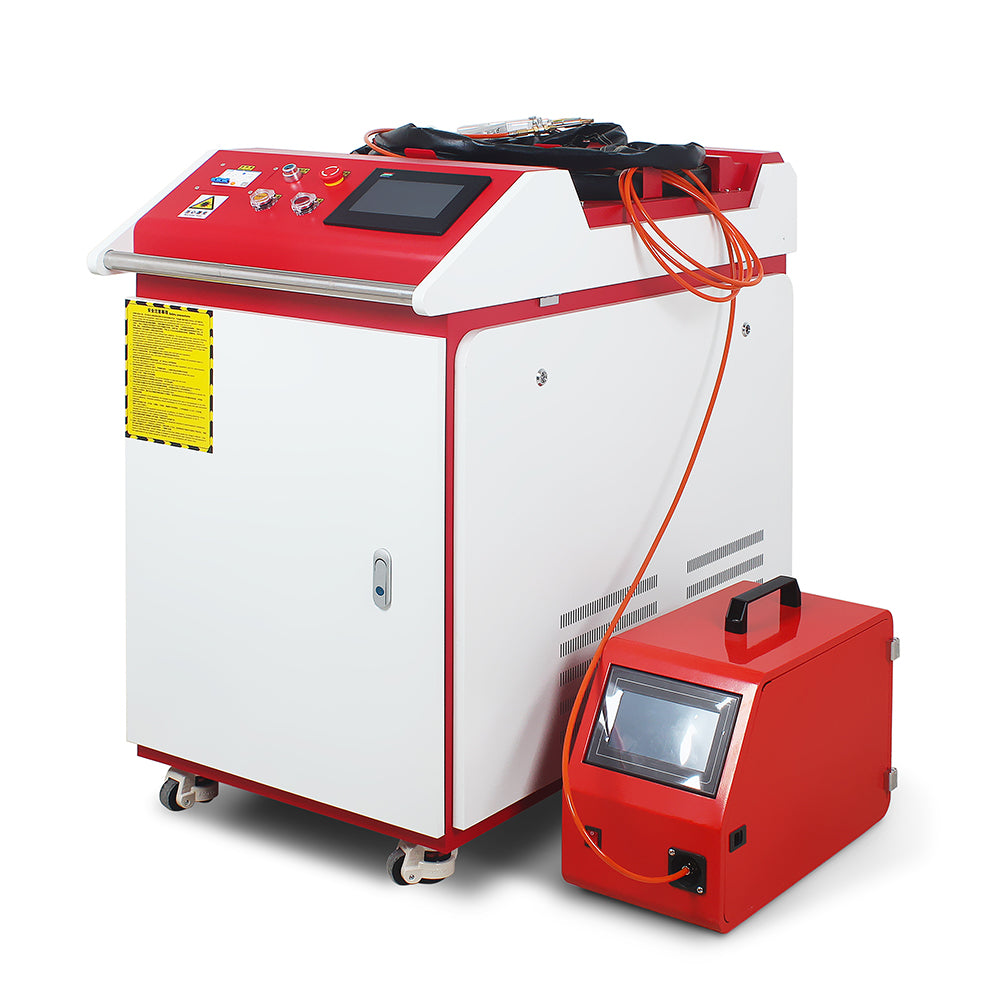

Laser Welding and Laser Cleaning Machine

A versatile 2-in-1 system that combines precision laser welding with efficient laser cleaning. Ideal for metal fabrication, rust and paint removal, and high-quality welds on stainless steel, aluminum, and other metals. Streamlines production with powerful performance and easy operation.

Application Industry:

Mainly applied on Bathroom industry, glasses industry, hardware industry, automotive industry, medical industry, electronics industry, household hardware, kitchen and bathroom, stainless steel door handles, electronic components, sensors, watches, precision machinery, communications, crafts and other industries, automotive hydraulic tappets and other high-strength industries such as product welding etc.

Applicable Material:

Mainly applied on all kinds of stainless steel, all kinds of stainless steel color plate, sheet iron, pure iron, pure aluminum, aluminum alloy, galvanized plate, copper, copper alloy etc.

Specifications – Laser Welding and Laser Cleaning Machine

• Machine Type: 2-in-1 Laser Welding & Laser Cleaning System

• Laser Type: Fiber Laser

• Laser Power Options: 1000W / 1500W

• Wavelength: 1064 nm

• Operation Mode: Continuous / Pulse (depending on application)

• Welding Thickness:

  • Stainless Steel: Up to 6 mm

  • Carbon Steel: Up to 5 mm

  • Aluminum: Up to 4 mm

• Cleaning Mode: Handheld laser head with adjustable scan width

• Cleaning Width: 10–80 mm adjustable

• Cleaning Capabilities: Rust, paint, oil, oxide layers, coatings

• Laser Head: Multifunctional head for both welding and cleaning (quick switch)

• Cooling Method: Water-cooled (integrated industrial chiller)

• Control System: Touchscreen interface with preset cleaning/welding modes

• Power Supply: AC 220V / 380V ±10%, 50/60Hz

• Supported Materials: Stainless steel, carbon steel, aluminum, copper, brass, etc.

• Machine Dimensions: Approx. 1000×600×1100 mm

• Optional Features: Wire feeder, rotary table, safety enclosure, laser safety goggles

• Safety Features: Emergency stop, interlock system, protective lens cover

• Working Environment: 10°C–35°C, ≤70% RH
