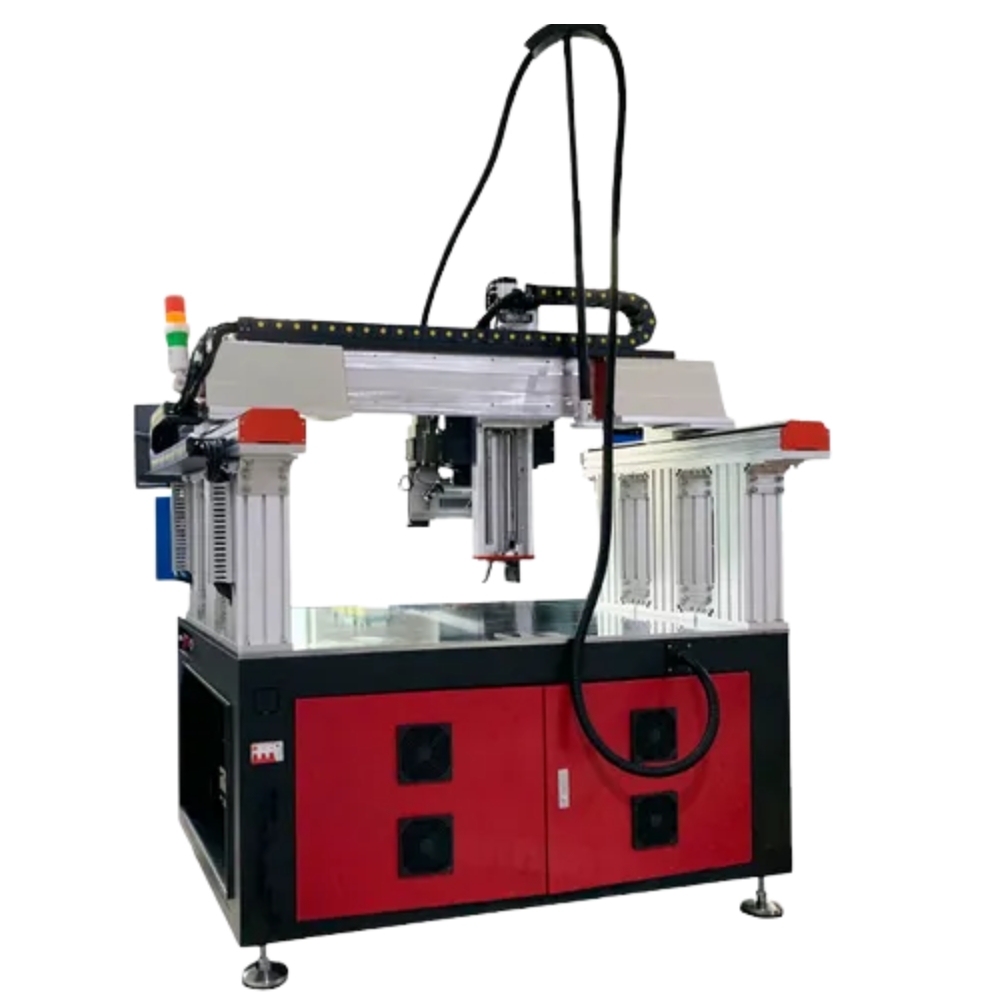

Galvanometer Laser Welding Machine

A high-speed, precision welding system equipped with a galvanometer scanner for ultra-fast with lower power consumption and higher beam quality. Ideal for fine, detailed welding tasks on metals and alloys in electronics, medical devices, and precision manufacturing. Delivers clean, consistent welds with minimal thermal distortion.

Specifications – Galvanometer Laser Welding Machine

• Laser Type: Fiber Laser

• Laser Power: 100W / 200W / 300W / 500W (customizable)

• Wavelength: 1064 nm

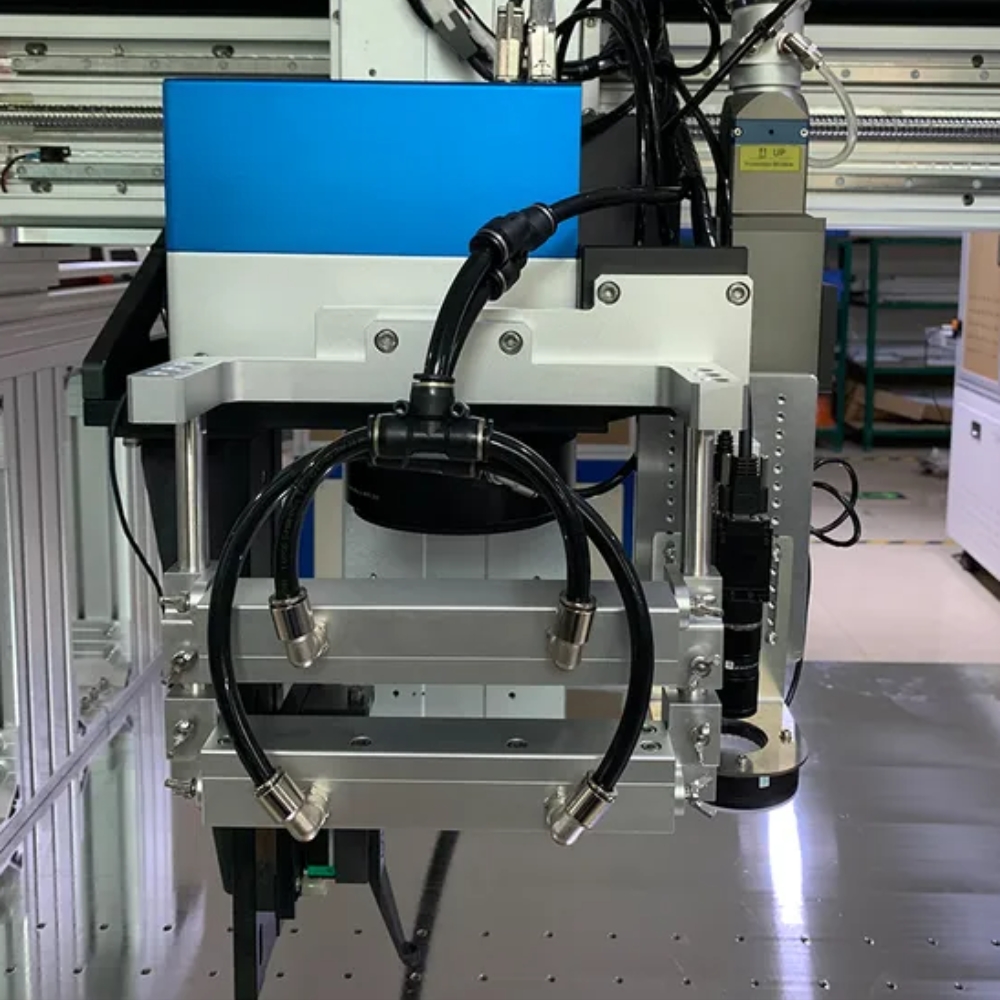

• Galvanometer Type: High-speed digital galvo scanning head

• Scanning Speed: Up to 7000 mm/s

• Positioning Accuracy: ±0.01 mm

• Spot Size: 0.1 – 0.5 mm (adjustable)

• Welding Modes: Continuous & Pulse

• Cooling System: Water cooling (industrial chiller included)

• Control System: PC-based with welding path editing software

• File Formats Supported: DXF, PLT, BMP, AI, etc.

• Compatible Materials: Stainless steel, carbon steel, aluminum, brass, titanium, nickel, and other metals/alloys

• Working Area: 100×100 mm / 200×200 mm / 300×300 mm (optional)

• Power Supply: AC 220V ±10%, 50/60Hz

• Machine Dimensions: Approx. 1200 × 800 × 1500 mm

• Net Weight: ~250–400 kg (varies by configuration)

• Optional Features:

  • CCD vision alignment system

  • Rotary axis for cylindrical parts

  • Fume extractor system

  • Automatic loading/unloading platform
