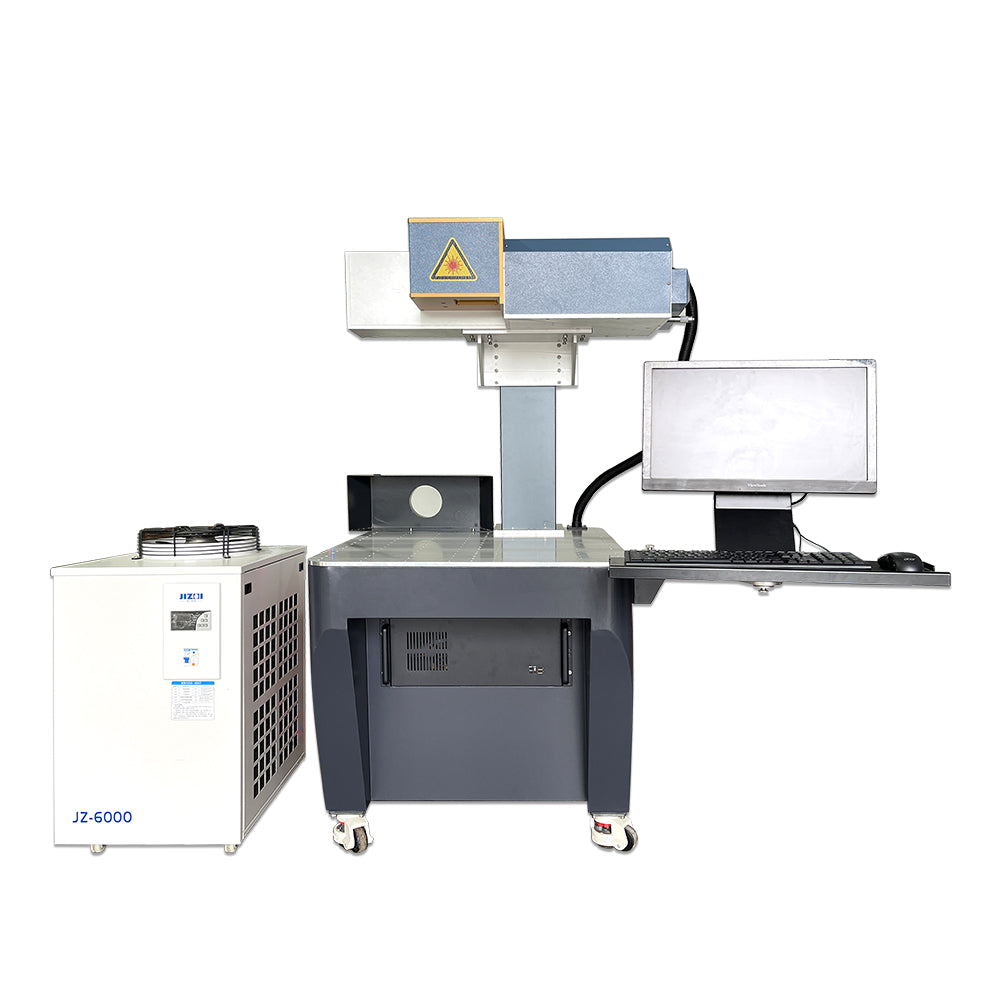

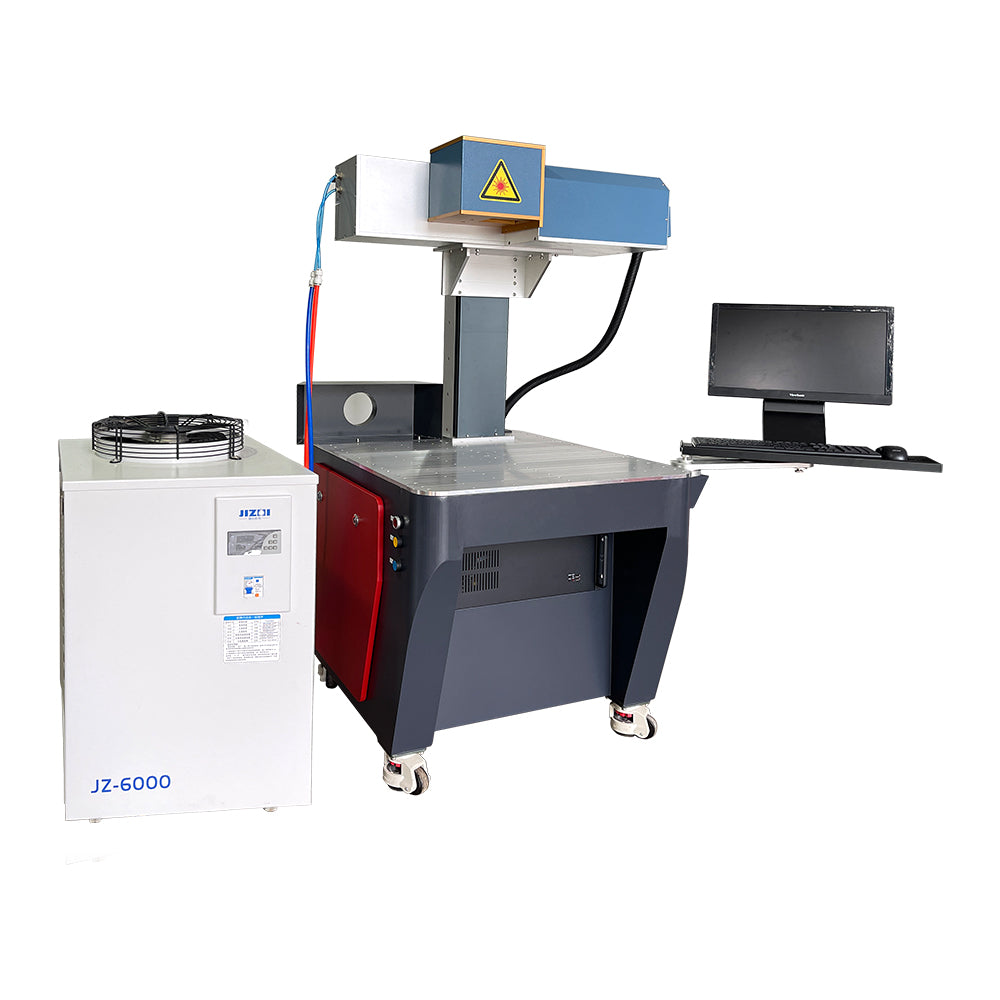

CO₂ 3D Dynamic Laser Marking Machine

An advanced laser marking system designed for high-speed, large-area, and curved surface marking. Equipped with a dynamic focusing system, it delivers precise 3D engraving on non-metal materials like wood, leather, acrylic, and plastic. Ideal for packaging, signage, and industrial applications.

Application Industry:

Mainly applied in glasses industry, leather products, clothing industry, footwear industry, wood products industry, craft gifts, packaging industry etc.

Applicable Material:

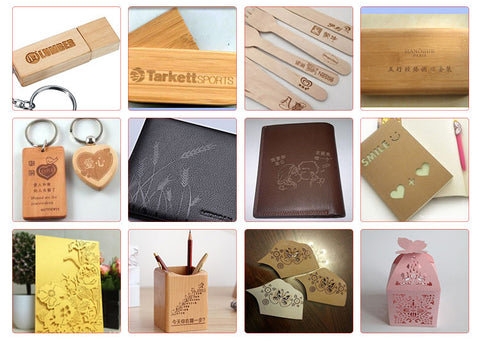

It is mainly applied for most of non-metal material, suitable for leather, cloth, wood, bamboo, paper, organic materials, acrylic, stone, etc.

Specifications – CO₂ 3D Dynamic Laser Marking Machine

• Laser Type: Sealed RF-Excited CO₂ Laser

• Laser Power: 100W

• Wavelength: 10.6 µm

• Marking Area: 100×100 mm / 175×175 mm / 200×200 mm / 300×300 mm / 600×600 mm

• Marking Depth: ≤1 mm (material dependent)

• Dynamic Axis Control: 3D Galvo System with Dynamic Focusing Lens

• Z-Axis Travel: Up to 200 mm (for variable height surfaces)

• Beam Quality (M²): <1.2

• Repetition Accuracy: ±0.01 mm

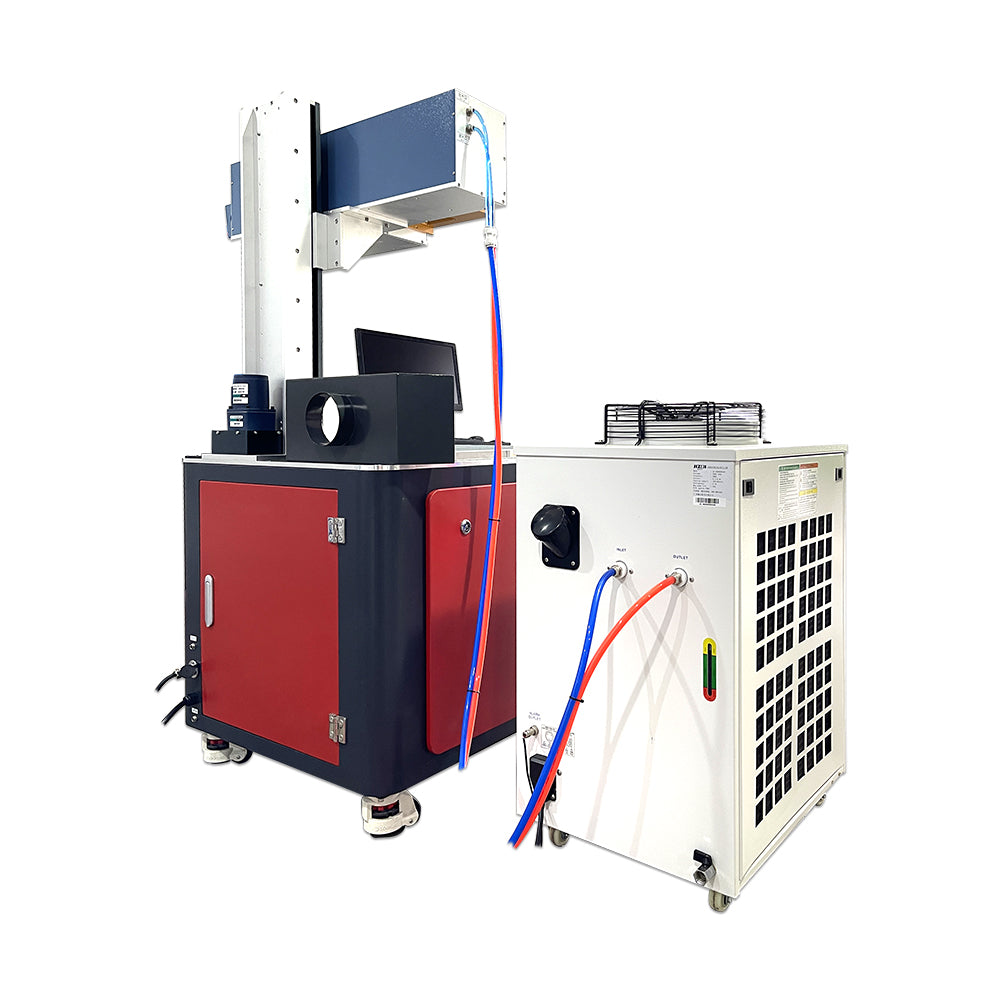

• Cooling Method: Air-cooled or water-cooled (based on power)

• Control Software: EZCAD with 3D Dynamic Focus Module

• Supported File Formats: PLT, BMP, DXF, JPG, AI, etc.

• Supported Materials: Wood, leather, plastic, acrylic, paper, rubber, glass, textiles

• Power Supply: AC 220V ±10%, 50/60Hz

• Machine Dimensions: Approx. 1000×800×1600 mm (varies with configuration)

• Optional Features: Fume extractor, rotary attachment, conveyor system

• Working Environment: 15°C–30°C, humidity ≤75% RH

• Laser Source Lifespan: ≥20,000 hours
