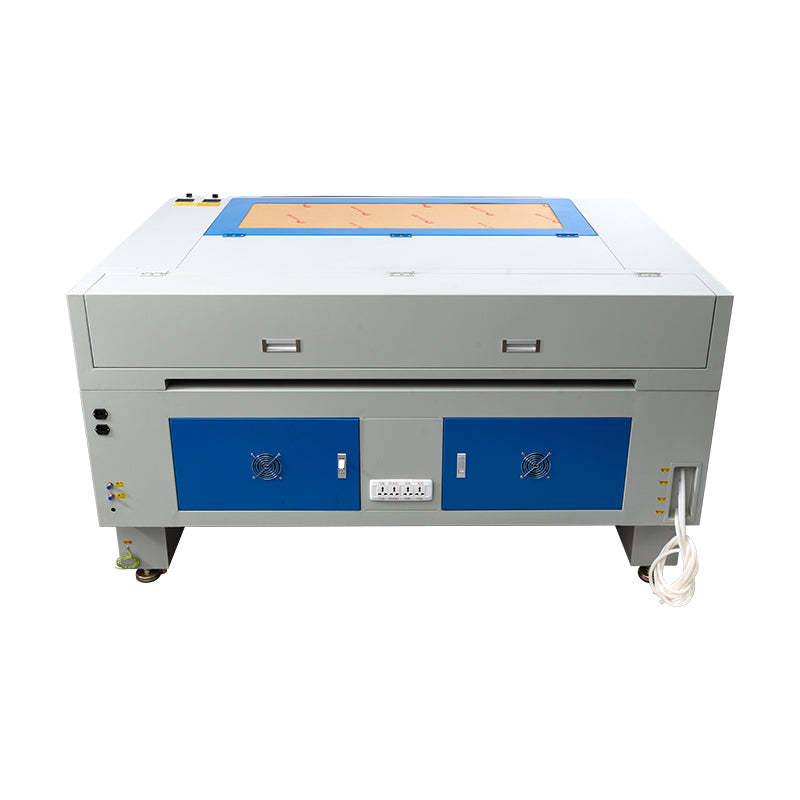

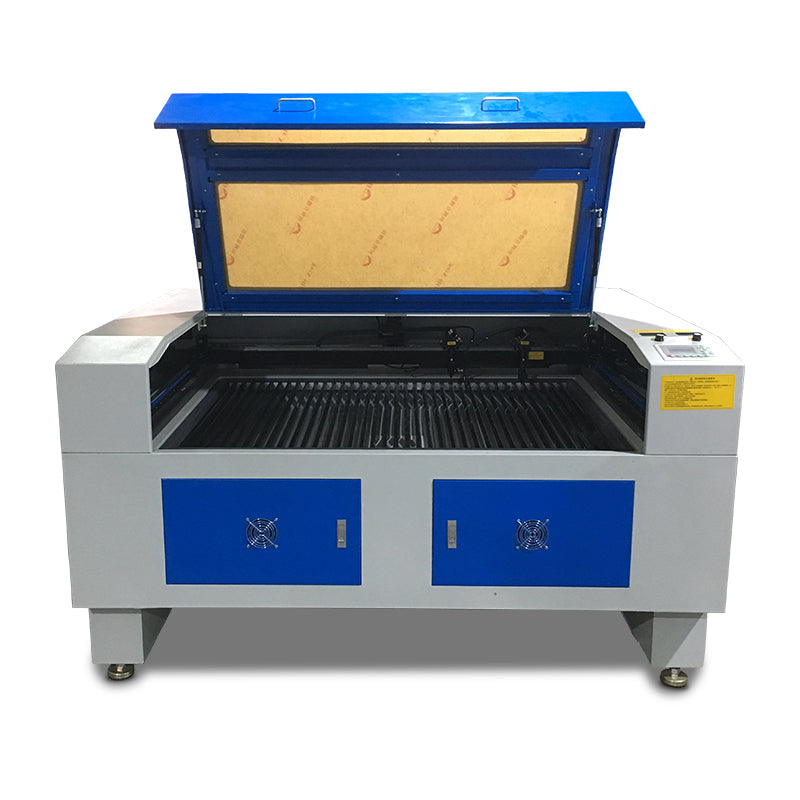

Carbon Dioxide Non-Metal Laser Cutting Machine

A high-precision Carbon Dioxide cutter designed for non-metal materials such as wood, acrylic, leather, fabric, and plastic. Delivers clean, smooth cuts with high speed and accuracy—ideal for signage, crafts, packaging, and industrial applications.

Industry Applications:

Paper-cut, clothing, leather, plush toys, luggage, medical, leather toys, computer embroidery cutting, cloth arts and crafts, felt products, paper products and other industries etc.

Applicable Material:

Silk fabric, cotton fabric, decorative fabric, polyester fabric, chemical fiber fabric, felt, pure hemp fabric, leather, artificial leather, decorative leather, packaging leather, soft leather, rubber, acrylic, wood, paper and all kinds of clothing accessories etc.

Specifications – 1390 CO₂ Non-Metal Laser Cutting Machine

• Model: 1390 Laser Cutting Machine

• Laser Type: Sealed CO₂ Glass Tube Laser

• Laser Power: 60W / 80W / 100W / 130W / 150W (optional)

• Working Area: 1300 × 900 mm

• Laser Wavelength: 10.6 μm

• Cutting Speed: 0–600 mm/s (material dependent)

• Positioning Accuracy: ±0.01 mm

• Repetition Accuracy: ±0.02 mm

• Cooling Method: Water cooling (industrial chiller recommended)

• Control System: DSP digital control, compatible with software like RDWorks or LightBurn

• Supported File Formats: AI, DXF, PLT, BMP, JPG, PNG, etc.

• Supported Materials: Acrylic, wood, MDF, plywood, leather, fabric, paper, plastic, rubber, etc.

• Cutting Thickness:

  • Acrylic: Up to 20 mm

  • Wood: Up to 15 mm (varies by power and material)

• Drive System: Stepper motors with linear guide rails

• Work Table Type: Honeycomb and blade table (dual option)

• Exhaust System: Built-in smoke and dust extraction fan

• Power Supply: AC 220V ±10%, 50/60Hz
